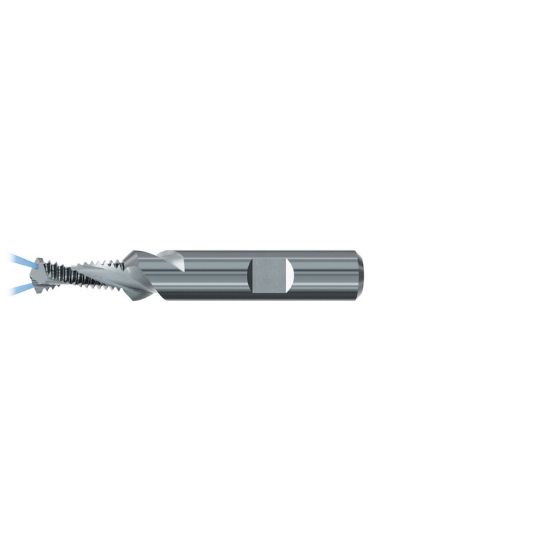

EMUGE GF442201.5014 Carbide Thread Mill 9/16" x 12.00TPI 0.464 Cutter Diameter 1.342 LOC 4.330 OAL 2 Flute Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF442201.5014
Delivery date: 3-5 days
$925.68

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 12.00TPI
Machine Side Connection Size 0.6299 16.00MM
Length Of Cut 1.3425 34.10MM
Overall Len 4.3307 110.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutter Dia 0.4646 11.80MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Thread Size 9/16"
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
