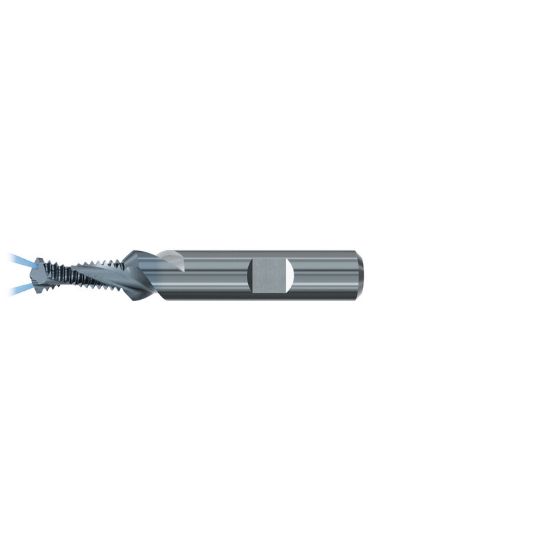

EMUGE GF432206.0973 Carbide Thread Mill M8 x 1.25MM 0.318 Cutter Diameter 0.643 LOC 3.110 OAL 2 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF432206.0973
Delivery date: 3-5 days
$598.23

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Thread Milling
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.3189 8.10MM
Machine Side Connection Size 0.4724 12.00MM
Overall Len 3.1102 79.00MM
Length Of Cut 0.6437 16.35MM
Thread Size M8
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Thread Pitch 1.25MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Medical Yes
