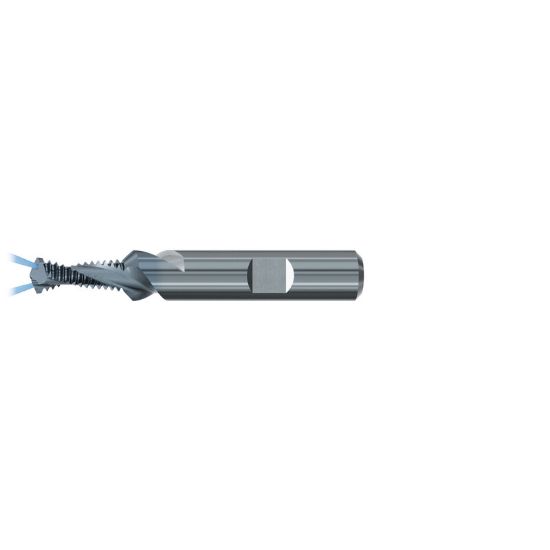

EMUGE GF432206.0229 Carbide Thread Mill M6 x 0.75MM 0.198 Cutter Diameter 0.475 LOC 2.440 OAL 2 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF432206.0229
Delivery date: 3-5 days
$456.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Thread Milling
Made In USA No
Coating TiCN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Size 0.3150 8.00MM
Cutter Dia 0.1988 5.05MM
Length Of Cut 0.4752 12.07MM
Thread Pitch 0.75MM
Thread Size M6
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4409 62.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
