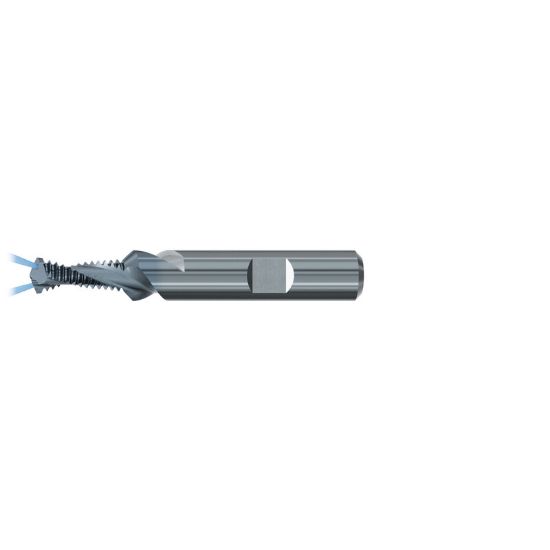

EMUGE GF432206.0116 Carbide Thread Mill M16 x 2.00MM 0.535 Cutter Diameter 1.265 LOC 4.015 OAL 2 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF432206.0116
Delivery date: 3-5 days
$1,037.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Coating TiCN
Shipping State Massachusetts
Application Thread Milling
Made In USA No
Dimensional Specifications
Length Of Cut 1.2650 32.13MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7087 18.00MM
Overall Len 4.0157 102.00MM
Thread Size M16
Cutter Dia 0.5354 13.60MM
Machine Side Connection Size 0.7087 18.00MM
Thread Pitch 2.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
