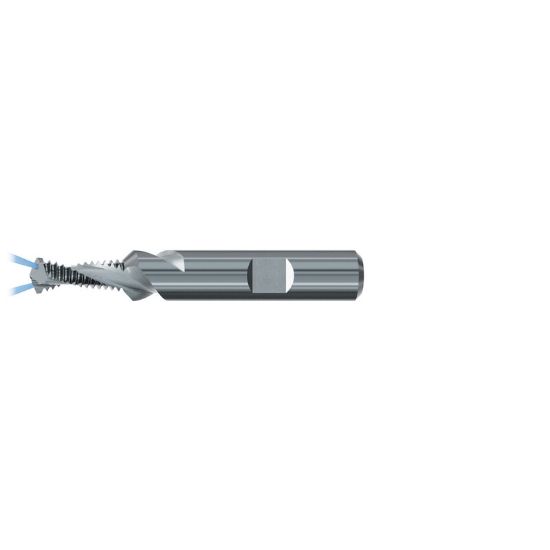

EMUGE GF432201.5044 Carbide Thread Mill 5/16" x 24.00TPI 0.259 Cutter Diameter 0.629 LOC 2.913 OAL 2 Flute Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF432201.5044
Delivery date: 3-5 days
$534.21

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 24.00TPI
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Size 0.3937 10.00MM
Thread Size 5/16"
Length Of Cut 0.6291 15.98MM
Shank/Pilot Dia 0.3937 10.00MM
Cutter Dia 0.2598 6.60MM
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Overall Len 2.9134 74.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Automotive Yes
Medical Yes
Energy Yes
