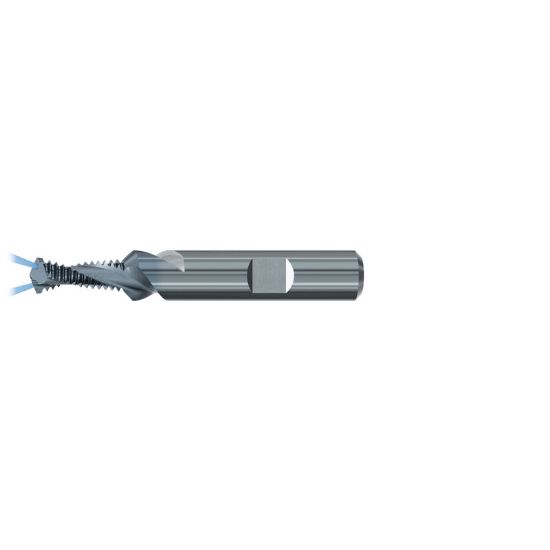

EMUGE GF422206.5012 Carbide Thread Mill 7/16" x 14.00TPI 0.354 Cutter Diameter 0.647 LOC 3.110 OAL 2 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF422206.5012
Delivery date: 3-5 days
$515.94

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Made In USA No
Dimensional Specifications
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.4724 12.00MM
Cutter Dia 0.3543 9.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Size 7/16"
Length Of Cut 0.6476 16.45MM
Machine Side Connection Size 0.4724 12.00MM
Overall Len 3.1102 79.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Automotive Yes
