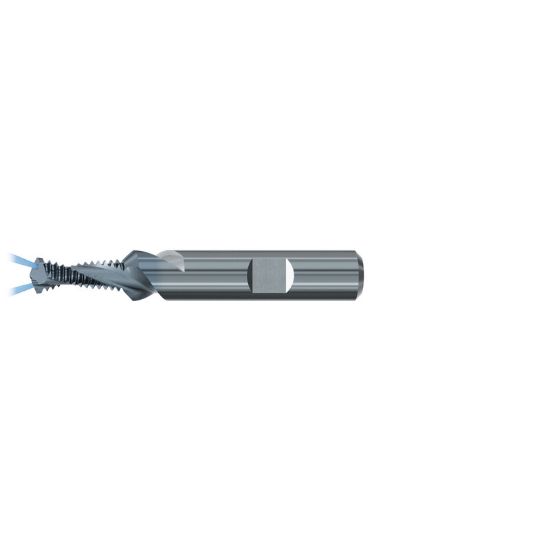

EMUGE GF422206.0971 Carbide Thread Mill M6 x 1.00MM 0.236 Cutter Diameter 0.397 LOC 2.913 OAL 2 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF422206.0971
Delivery date: 3-5 days
$531.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Coating TiCN
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.3937 10.00MM
Length Of Cut 0.3976 10.10MM
Tool Material Cobalt
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Type Cylindrical
Overall Len 2.9134 74.00MM
Thread Pitch 1.00MM
Cutter Dia 0.2362 6.00MM
Shank/Pilot Dia 0.3937 10.00MM
Thread Size M6
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Energy Yes
Medical Yes
Aerospace Yes
