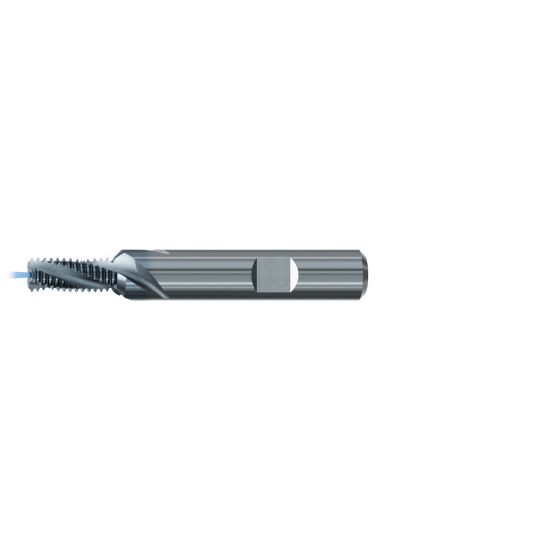

EMUGE GF332106.5011 Carbide Thread Mill 3/8" x 16.00TPI 0.301 Cutter Diameter 0.783 LOC 3.149 OAL 3 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF332106.5011
Delivery date: 3-5 days
$452.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Coating TiCN
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 16.00TPI
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.1496 80.00MM
Length Of Cut 0.7835 19.90MM
Cutter Dia 0.3012 7.65MM
Thread Size 3/8"
Machine Side Connection Size 0.4724 12.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Energy Yes
