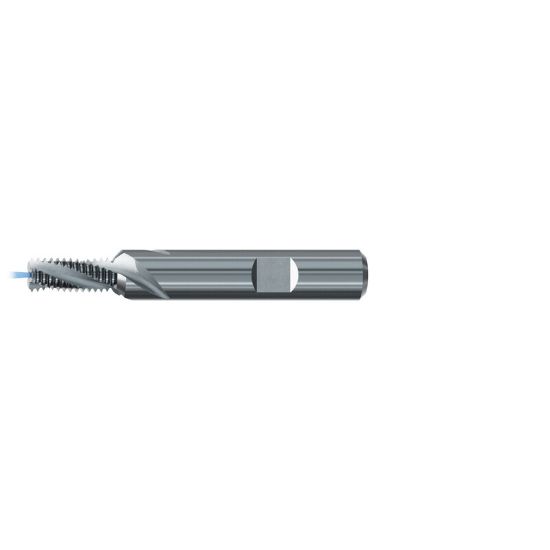

EMUGE GF332101.5013 Carbide Thread Mill 1/2" x 13.00TPI 0.407 Cutter Diameter 1.039 LOC 3.543 OAL 4 Flute Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF332101.5013
Delivery date: 3-5 days
$622.97

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Thread Milling
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.5512 14.00MM
Length Of Cut 1.0394 26.40MM
Thread Size 1/2"
Cutter Dia 0.4075 10.35MM
Shank/Pilot Dia 0.5512 14.00MM
Thread Pitch 13.00TPI
Overall Len 3.5433 90.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
