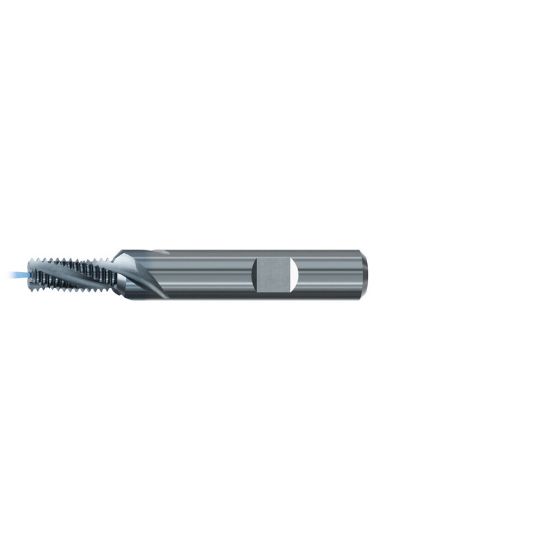

EMUGE GF322106.5010 Carbide Thread Mill 5/16" x 18.00TPI 0.242 Cutter Diameter 0.527 LOC 2.913 OAL 3 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF322106.5010
Delivery date: 3-5 days
$393.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Application Thread Milling
Made In USA No
Dimensional Specifications
Cutter Dia 0.2421 6.15MM
Thread Pitch 18.00TPI
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Overall Len 2.9134 74.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Length Of Cut 0.5276 13.40MM
Thread Size 5/16"
Machine Side Connection Size 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
