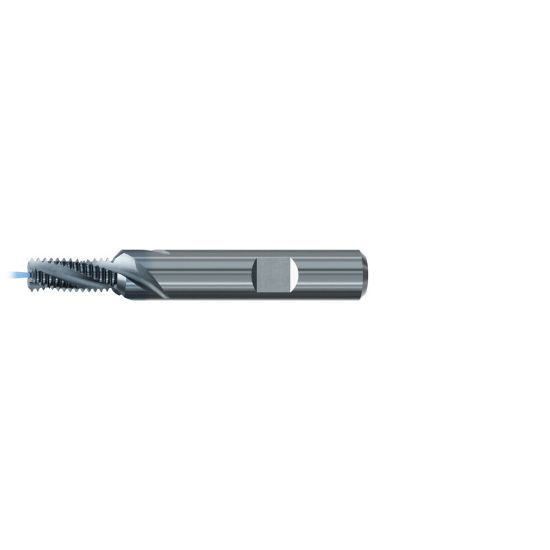

EMUGE GF322106.5009 Carbide Thread Mill 1/4" x 20.00TPI 0.185 Cutter Diameter 0.425 LOC 2.440 OAL 3 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF322106.5009
Delivery date: 3-5 days
$329.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Dimensional Specifications
Thread Pitch 20.00TPI
Length Of Cut 0.4252 10.80MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Size 0.3150 8.00MM
Cutter Dia 0.1850 4.70MM - #13
Tool Material Cobalt
Thread Size 1/4"
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4409 62.00MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Automotive Yes
