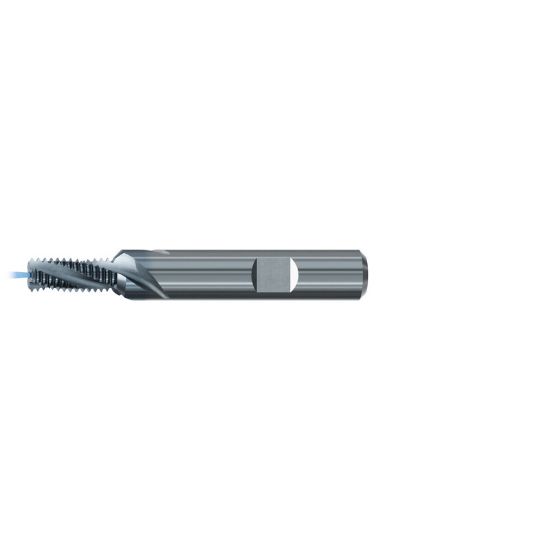

EMUGE GF322106.0060 Carbide Thread Mill M6 x 1.00MM 0.189 Cutter Diameter 0.374 LOC 2.440 OAL 3 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF322106.0060
Delivery date: 3-5 days
$291.37

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Shipping State Massachusetts
Performance Rating High Performance
Application Thread Milling
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Tool Material Cobalt
Thread Pitch 1.00MM
Thread Size M6
Cut Rating <40HRC, Stainless, Iron, High Temp
Length Of Cut 0.3740 9.50MM
Cutter Dia 0.1890 4.80MM - #12
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4409 62.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Automotive Yes
