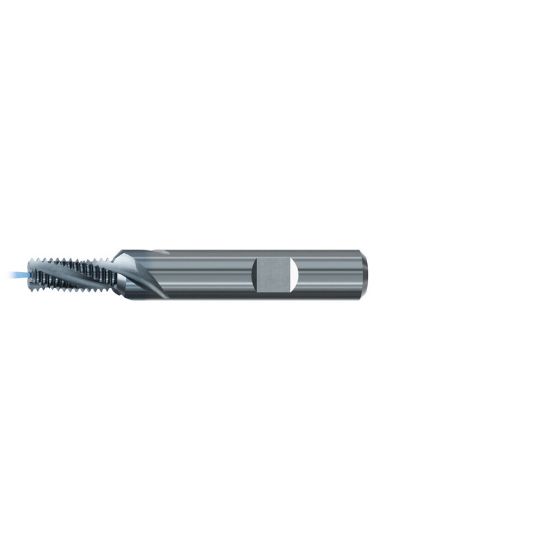

EMUGE GF322106.0050 Carbide Thread Mill M5 x 0.80MM 0.157 Cutter Diameter 0.299 LOC 2.165 OAL 3 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF322106.0050
Delivery date: 3-5 days
$265.14

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Coating TiCN
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Dimensional Specifications
Thread Size M5
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutter Dia 0.1575 4.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.1654 55.00MM
Length Of Cut 0.2992 7.60MM
Machine Side Connection Size 0.2362 6.00MM
Thread Pitch 0.80MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
