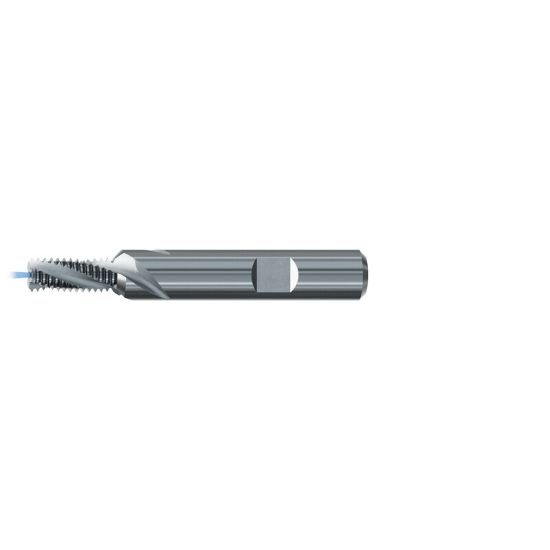

EMUGE GF322101.5048 Carbide Thread Mill 9/16" x 18.00TPI 0.492 Cutter Diameter 0.862 LOC 3.937 OAL 4 Flute Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF322101.5048
Delivery date: 3-5 days
$719.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Thread Milling
Made In USA No
Package Size 1
Shipping State Massachusetts
Dimensional Specifications
Thread Size 9/16"
Length Of Cut 0.8622 21.90MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Type Cylindrical
Overall Len 3.9370 100.00MM
Shank/Pilot Dia 0.6299 16.00MM
Thread Pitch 18.00TPI
Cutter Dia 0.4921 12.50MM
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
