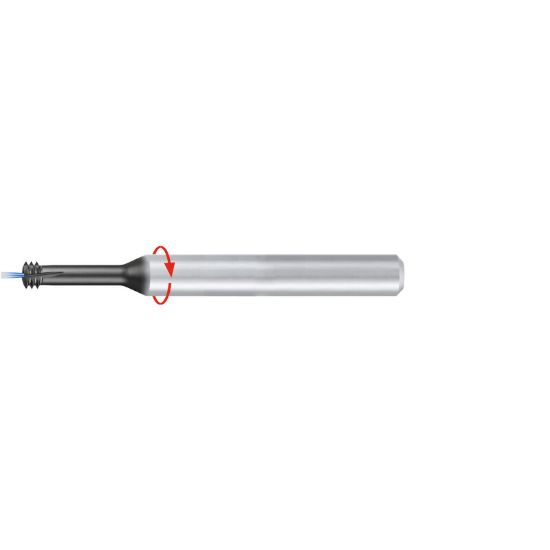

EMUGE GF26A729.5046 Carbide Thread Mill 7/16" x20.00TPI Carbide TIALN-T46

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF26A729.5046
Delivery date: 3-5 days
$417.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Coating TiAlN-T46
Performance Rating High Performance
Application Thread Milling
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.3937 10.00MM
Tool Material Cobalt
Thread Pitch 20.00TPI
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Thread Size 7/16"
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
