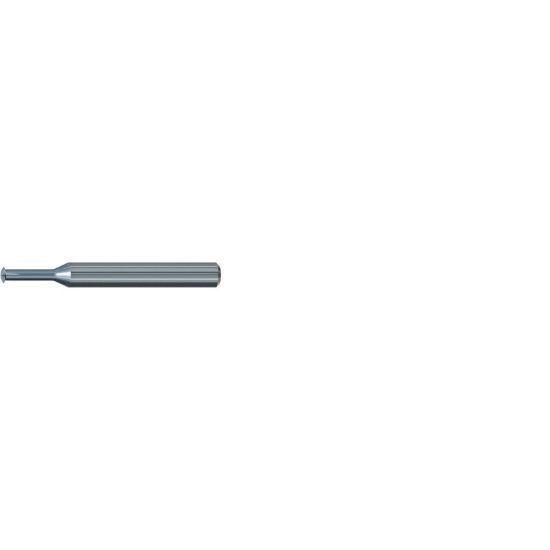

EMUGE GF253706.0020 Carbide Thread Mill M2-M2.3 x0.45MM Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF253706.0020
Delivery date: 3-5 days
$177.89

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Package Size 1
Coating TiCN
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 0.45MM
Machine Side Connection Size 0.1181 3.00MM
Length Of Cut 1.1024 28.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.0598 1.52MM
Shank/Pilot Dia 0.1181 3.00MM
Overall Len 1.5354 39.00MM
Thread Size M2-M2.3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
