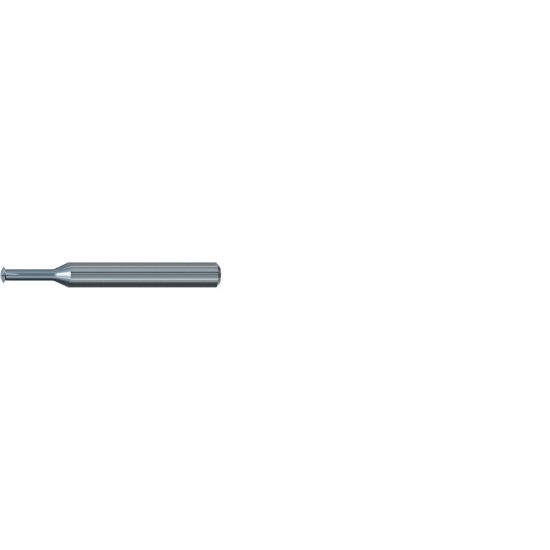

EMUGE GF253706.0014 Carbide Thread Mill M1.4-M1.8 x0.35MM Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF253706.0014
Delivery date: 3-5 days
$177.89

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Thread Milling
Made In USA No
Package Size 1
Coating TiCN
Shipping State Massachusetts
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Size M1.4-M1.8
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Overall Len 1.5354 39.00MM
Machine Side Connection Size 0.1181 3.00MM
Length Of Cut 1.1024 28.00MM
Thread Pitch 0.35MM
Cutter Dia 0.0409 1.04MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
