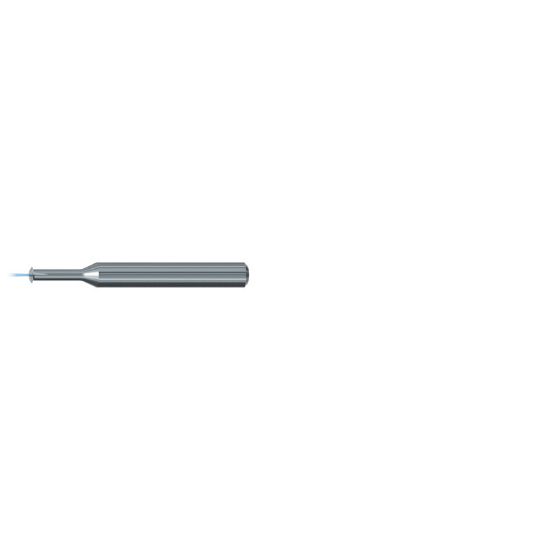

EMUGE GF253701.0112 Carbide Thread Mill M12-M16 x2.00MM Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF253701.0112
Delivery date: 3-5 days
$323.74

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Application Thread Milling
Dimensional Specifications
Thread Pitch 2.00MM
Shank/Pilot Dia 0.3937 10.00MM
Cutter Dia 0.3898 9.90MM
Tool Material Cobalt
Overall Len 3.0709 78.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3937 10.00MM
Thread Size M12-M16
Length Of Cut 1.5748 40.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
