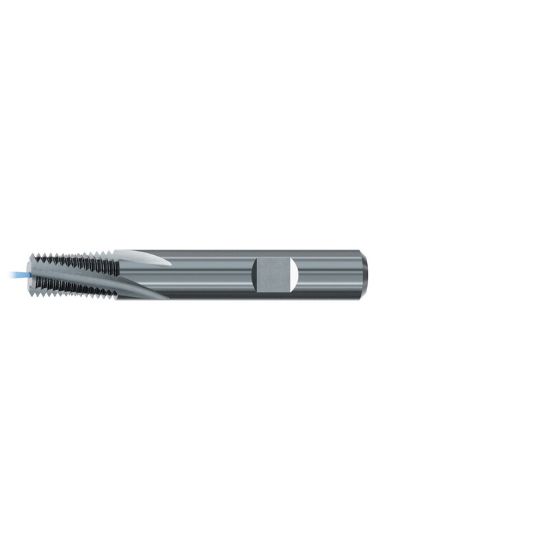

EMUGE GF175311.5766 Carbide Thread Mill 3/8" x 18.00TPI 0.439 Cutter Diameter 0.439 LOC 1.771 OAL 4 Flute Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF175311.5766
Delivery date: 3-5 days
$492.14

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Thread Milling
Dimensional Specifications
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 1.7717 45.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Pitch 18.00TPI
Length Of Cut 0.4390 11.15MM
Thread Size 3/8"
Machine Side Connection Size 0.4724 12.00MM
Cutter Dia 0.4390 11.15MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Energy Yes
Medical Yes
Automotive Yes
Job Shop Yes
