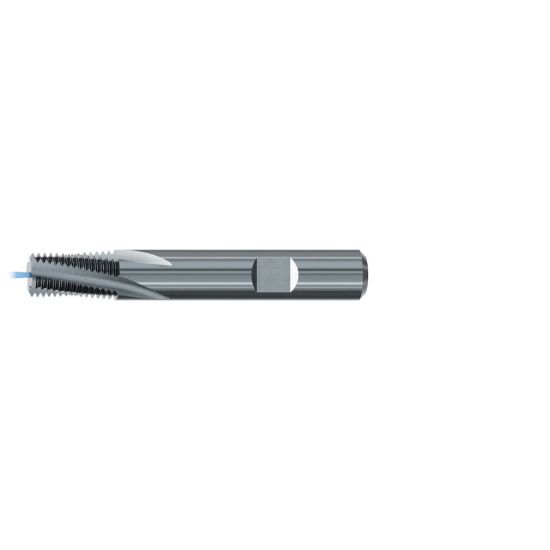

EMUGE GF175301.5764 Carbide Thread Mill 1/8" x 27.00TPI 0.301 Cutter Diameter 0.301 LOC 1.417 OAL 3 Flute Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF175301.5764
Delivery date: 3-5 days
$394.37

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.3012 7.65MM
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Thread Size 1/8"
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 1.4173 36.00MM
Length Of Cut 0.3012 7.65MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Medical Yes
