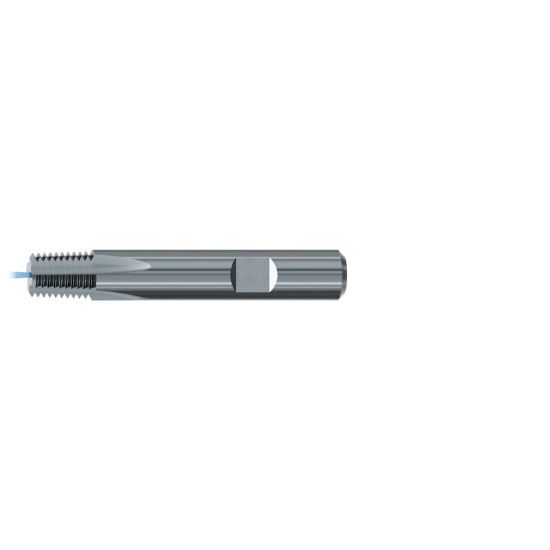

EMUGE GF173111.4116 Carbide Thread Mill 1/4-3/8" x 19.00TPI 0.399 Cutter Diameter 0.549 LOC 2.952 OAL 4 Flute Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF173111.4116
Delivery date: 3-5 days
$520.68

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Application Thread Milling
Made In USA No
Shipping State Massachusetts
Dimensional Specifications
Thread Size 1/4"-3/8
Thread Pitch 19.00TPI
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Length Of Cut 0.5496 13.96MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutter Dia 0.3996 10.15MM
Tool Material Carbide
Machine Side Connection Size 0.4724 12.00MM
Overall Len 2.9528 75.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
