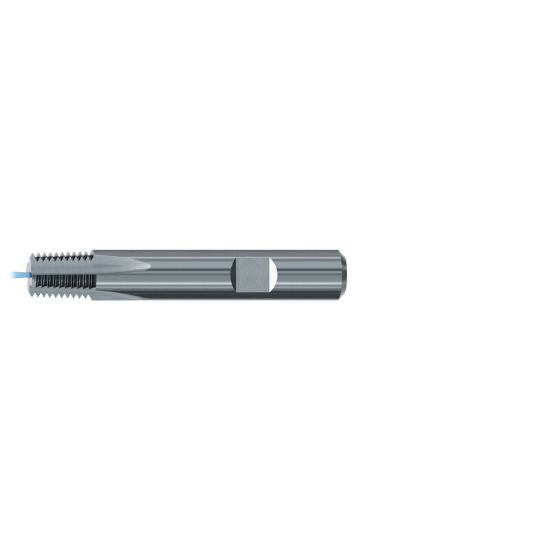

EMUGE GF173101.4115 Carbide Thread Mill 1/8" x 28.00TPI 0.301 Cutter Diameter 0.337 LOC 2.165 OAL 3 Flute Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF173101.4115
Delivery date: 3-5 days
$454.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.3150 8.00MM
Thread Pitch 28.00TPI
Cut Rating <40HRC, Stainless, Iron, High Temp
Tool Material Cobalt
Thread Size 1/8"
Cutter Dia 0.3012 7.65MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Overall Len 2.1654 55.00MM
Length Of Cut 0.3370 8.56MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Automotive Yes
