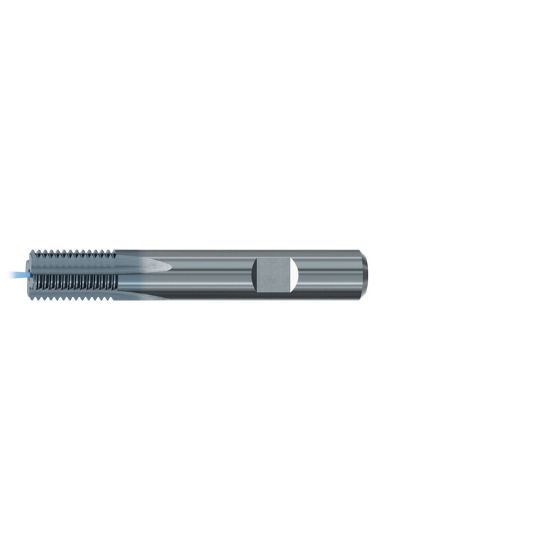

EMUGE GF163216.9512 Carbide Thread Mill M14 x1.00MM Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF163216.9512
Delivery date: 3-5 days
$368.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Size M14
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Overall Len 2.7560 70.00MM
Thread Pitch 1.00MM
Cutter Dia 0.3898 9.90MM
Tool Material Cobalt
Machine Side Connection Size 0.3937 10.00MM
Length Of Cut 0.6457 16.40MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
