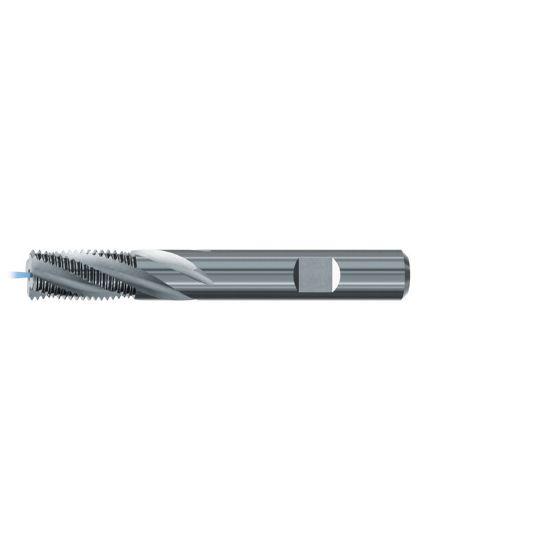

EMUGE GF162331.9518 Carbide Thread Mill M24 x3.00MM Carbide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF162331.9518
Delivery date: 3-5 days
$693.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Thread Milling
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Size M24
Thread Pitch 3.00MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Length Of Cut 1.3504 34.30MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Machine Side Connection Type Cylindrical
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutter Dia 0.6260 15.90MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
