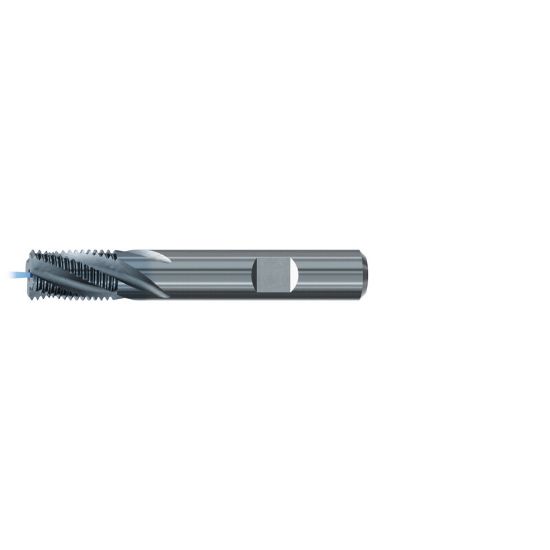

EMUGE GF162216.9545 Carbide Thread Mill 1/4"-3/8" x 19.00TPI 0.389 Cutter Diameter 0.657 LOC 2.755 OAL 4 Flute Carbide TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUGF162216.9545
Delivery date: 3-5 days
$415.97

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Shipping State Massachusetts
Application Thread Milling
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Cutter Dia 0.3898 9.90MM
Tool Material Cobalt
Thread Pitch 19.00TPI
Machine Side Connection Size 0.3937 10.00MM
Thread Size 1/4"-3/8
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 2.7560 70.00MM
Machine Side Connection Type Cylindrical
Cut Rating <40HRC, Stainless, Iron, High Temp
Length Of Cut 0.6575 16.70MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Automotive Yes
