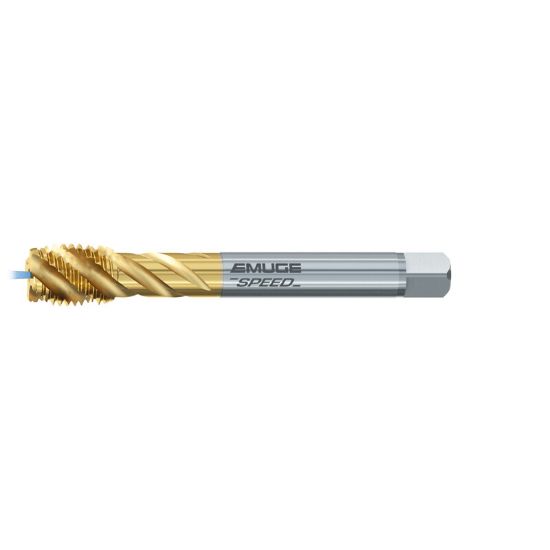

EMUGE CW553700.5047 Tap 1/2-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Coolant Carbide HSSE TiN

ISO: CW553700.5047

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW553700.5047
Delivery date: 3-5 days
$131.28

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating TiN
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 20.00TPI
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Tap Type Mod Bottom
Thread Size 1/2"
Thread Type NF/UNF/UNEF
Thread Limit 2B
Shank/Pilot Dia 0.3670 9.32MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
