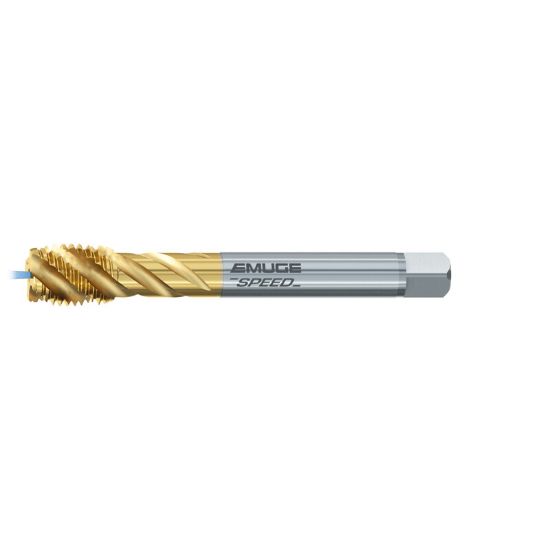

EMUGE CW553700.5046 Tap 7/16-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Coolant HSS HSSE TiN

ISO: CW553700.5046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW553700.5046
Delivery date: 3-5 days
$128.84

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating TiN
Dimensional Specifications
Thread Type NF/UNF/UNEF
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Thread Limit 2B
Thread Pitch 20.00TPI
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Type Mod Bottom
Tool Material Steel
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
