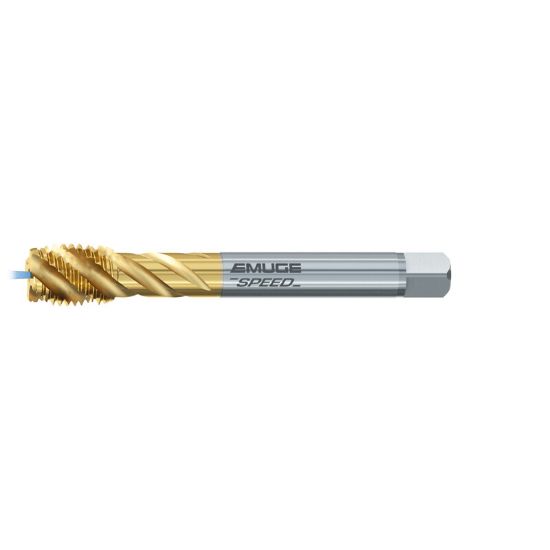

EMUGE CW553700.5012 Tap 7/16-14.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant HSS HSSE TiN

ISO: CW553700.5012

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW553700.5012
Delivery date: 3-5 days
$125.40

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Tap Square 0.2420
Thread Pitch 14.00TPI
Thread Limit 2B
Thread Size 7/16"
Tool Material Steel
Overall Len 3.9370 100.00MM
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Type Mod Bottom
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
