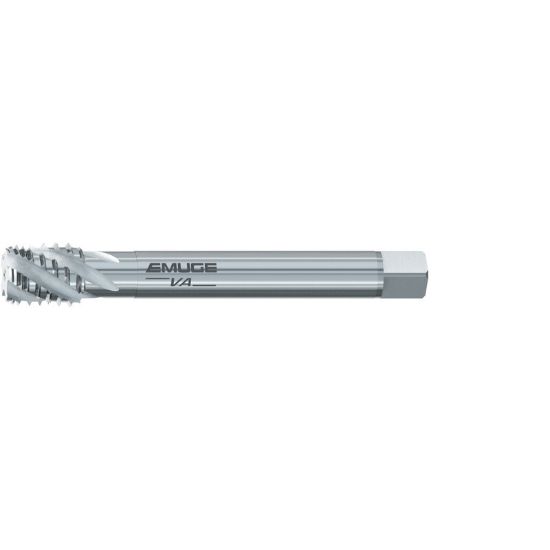

EMUGE CW493000.5763 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT DINSI 2.0P-3.0P Carbide HSSE

ISO: CW493000.5763

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW493000.5763
Delivery date: 3-5 days
$109.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Limit PIPE
Drill Range 0.2417 6.14MM
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Overall Len 3.5430 89.99MM
Flutes/Inserts 3
Tap Square 0.2340
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Tap Type Pipe
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
