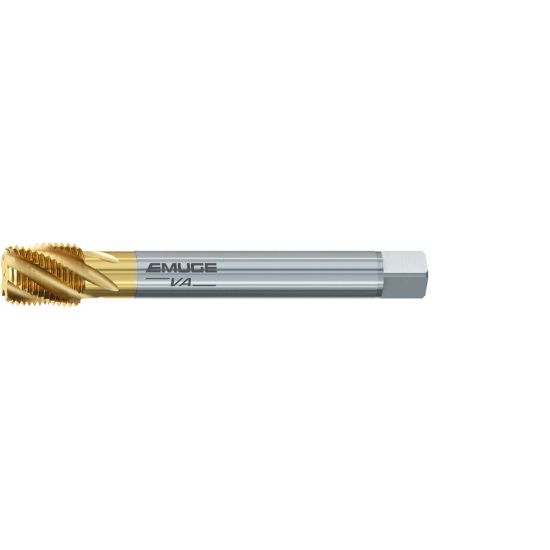

EMUGE CW483100.5768 Tap 3/4-14.00TPI Pipe NPT/NPTF/ANPT DINSI 2.0P-3.0P HSSE TiN

ISO: CW483100.5768

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW483100.5768
Delivery date: 3-5 days
$292.46

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Size 3/4"
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Tap Square 0.6790
Overall Len 5.5120 140.00MM
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 0.9060 23.01MM
Tap Type Pipe
Thread Pitch 14.00TPI
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
