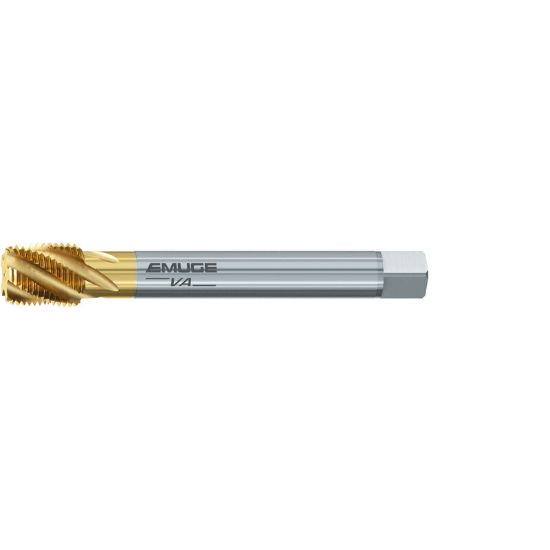

EMUGE CW483100.5767 Tap 1/2-14.00TPI Pipe NPT/NPTF/ANPT DINSI 2.0P-3.0P Carbide HSSE TiN

ISO: CW483100.5767

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW483100.5767
Delivery date: 3-5 days
$216.06

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Package Size 1
Made In USA No
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Dimensional Specifications
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.5150
Tap Chamfer 2.0P-3.0P
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.6870 17.45MM
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Tap Type Pipe
Thread Limit PIPE
Overall Len 5.5120 140.00MM
Tap Style Pipe Spiral Flute
Thread Size 1/2"
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
