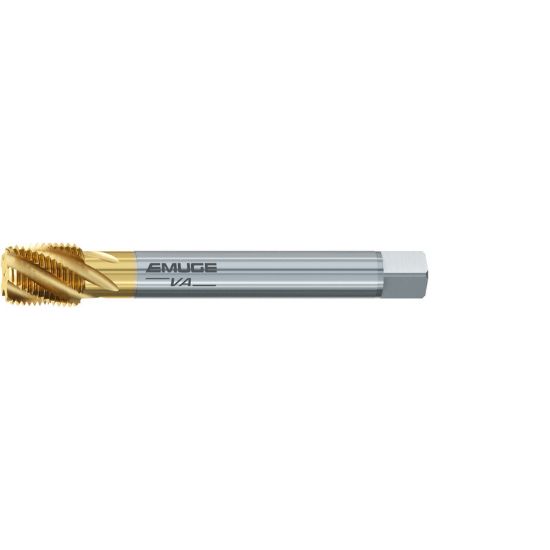

EMUGE CW483100.5764 Tap 1/8-27.00TPI Pipe NPT/NPTF/ANPT DINSI 2.0P-3.0P HSSE TiN

ISO: CW483100.5764

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW483100.5764
Delivery date: 3-5 days
$97.28

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating TiN
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.4370 11.10MM
Overall Len 3.9370 100.00MM
Drill Range 0.3319 8.43MM
Tap Square 0.3280
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Thread Size 1/8"
Thread Pitch 27.00TPI
Tap Type Pipe
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
