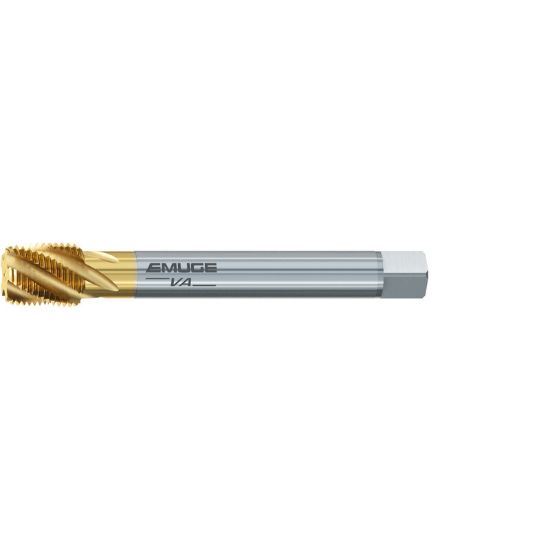

EMUGE CW483100.5763 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT DINSI 2.0P-3.0P Carbide HSSE TiN

ISO: CW483100.5763

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW483100.5763
Delivery date: 3-5 days
$90.40

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Overall Len 3.5430 89.99MM
Tap Square 0.2340
Thread Pitch 27.00TPI
Tap Type Pipe
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.2417 6.14MM
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
