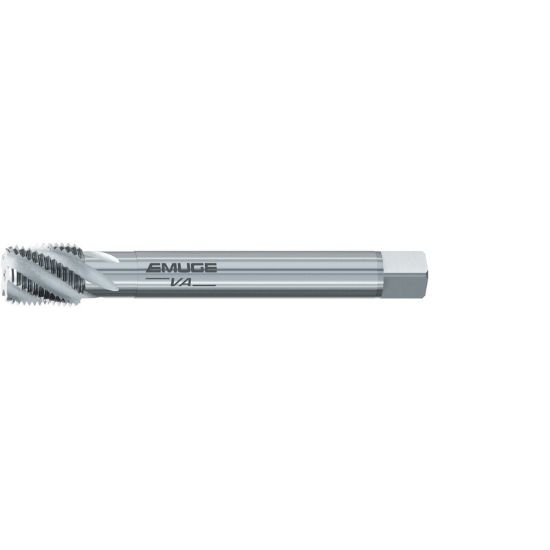

EMUGE CW483000.5767 Tap 1/2-14.00TPI Pipe NPT/NPTF/ANPT DINSI 2.0P-3.0P Carbide HSSE

ISO: CW483000.5767

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW483000.5767
Delivery date: 3-5 days
$180.92

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.5150
Length Type Standard
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Size 1/2"
Flutes/Inserts 5
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Thread Pitch 14.00TPI
Tap Type Pipe
Shank/Pilot Dia 0.6870 17.45MM
Thread Limit PIPE
Overall Len 5.5120 140.00MM
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
