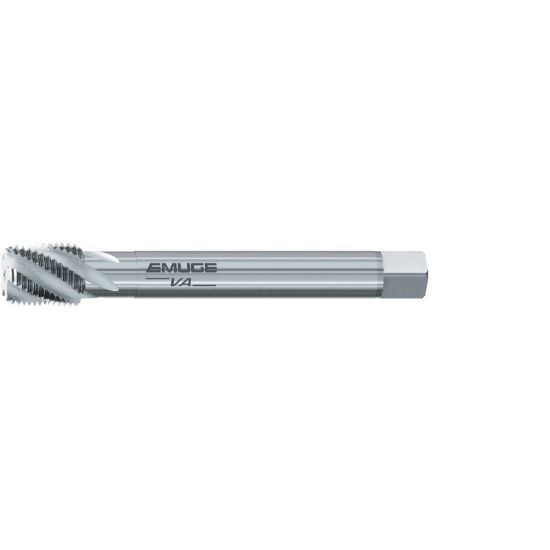

EMUGE CW483000.5763 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT DINSI 2.0P-3.0P Carbide HSSE

ISO: CW483000.5763

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCW483000.5763
Delivery date: 3-5 days
$77.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Overall Len 3.5430 89.99MM
Tap Square 0.2340
Flutes/Inserts 3
Thread Limit PIPE
Drill Range 0.2417 6.14MM
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Tap Type Pipe
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
