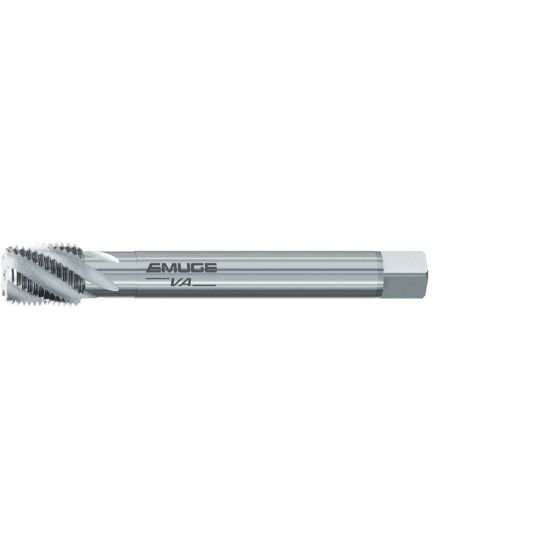

Picture of Emuge CW483000.5765 Tap 1/4-18.00TPI Pipe NPT/NPTF/ANPT DINSI 2.0P-3.0P Carbide HSSE

Emuge CW483000.5765 Tap 1/4-18.00TPI Pipe NPT/NPTF/ANPT DINSI 2.0P-3.0P Carbide HSSE

Part Number: EMUCW483000.5765 ISO: CW483000.5765

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157982
Vendor: Sussex Tool and Supply
$88.40
EMUGE CW483000.5765 1/4"x18.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5620 14.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard DINSI
Tap Drill Range 0.4378 11.12MM
Tap Square 0.4210
Tap Chamfer 2.0P-3.0P
