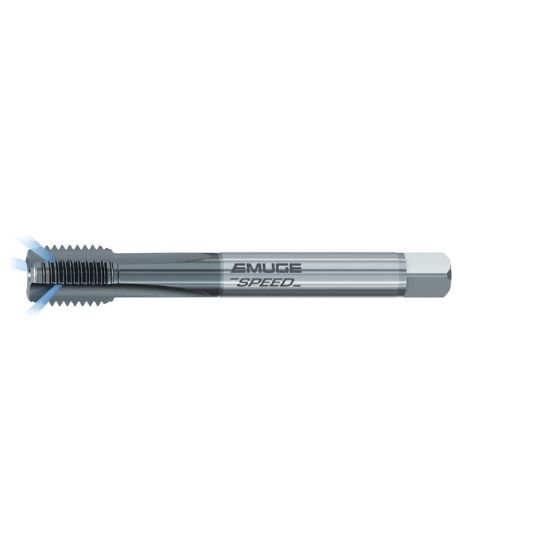

Picture of Emuge CW179401.5018 Tap 1-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Emuge CW179401.5018 Tap 1-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Part Number: EMUCW179401.5018 ISO: CW179401.5018

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158753
Vendor: Sussex Tool and Supply
$375.33
EMUGE CW179401.5018 1"x8.00TPI Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE TiCN 2B NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 6.2990 159.99MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 1"
Thread Limit 2B
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Tap Square 0.6000
Tap Chamfer 2.0P-3.0P
