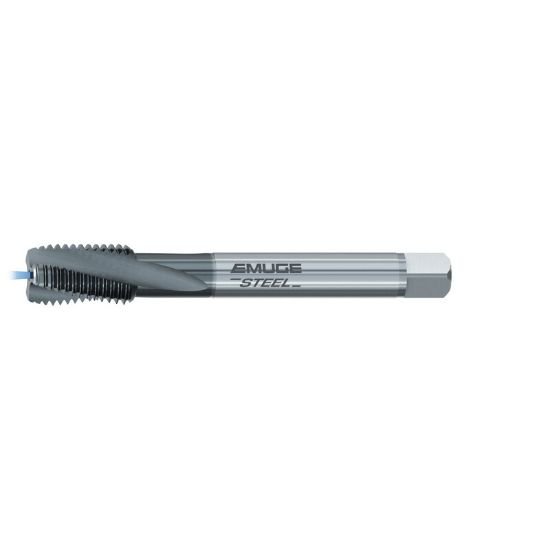

Picture of Emuge CU979000.5012 Tap 7/16-14.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Emuge CU979000.5012 Tap 7/16-14.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Part Number: EMUCU979000.5012 ISO: CU979000.5012
Looking for alternatives…
Find a drill for this tap 7/16" × 14.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1156032
Vendor: Sussex Tool and Supply
$150.99

Description

EMUGE CU979000.5012 7/16"x14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiCN 2B NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Thread Pitch 14.00TPI
Thread Size 7/16"
Tap Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Tap Square 0.2420
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
