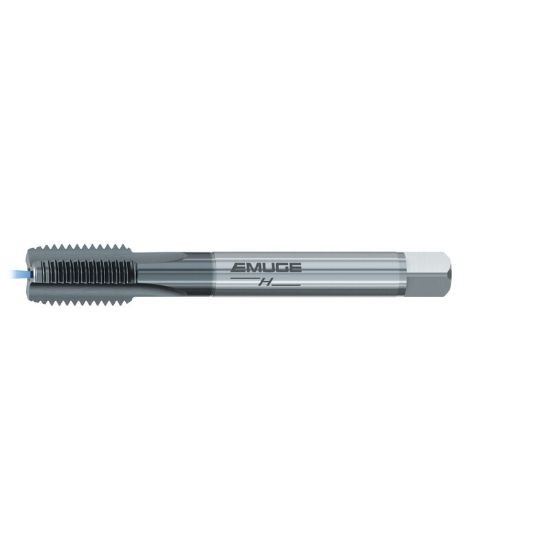

Picture of Emuge CU959101.5016 Tap 3/4-10.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant HSSE TiCN

Emuge CU959101.5016 Tap 3/4-10.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant HSSE TiCN

Part Number: EMUCU959101.5016 ISO: CU959101.5016
Looking for alternatives…
Find a drill for this tap 3/4" × 10.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1156265
Vendor: Sussex Tool and Supply
$254.47

Description

EMUGE CU959101.5016 3/4"x10.00TPI Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE TiCN 2B NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction STRAIGHT
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.9210 124.99MM
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 4
Thread Pitch 10.00TPI
Thread Size 3/4"
Tap Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Square 0.4420
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DINSI
