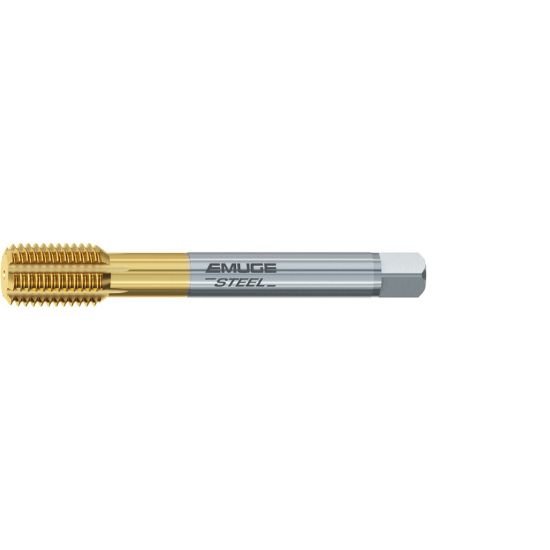

Picture of Emuge CU921400.5051 Tap 7/8-14.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE TiN

Emuge CU921400.5051 Tap 7/8-14.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE TiN

Part Number: EMUCU921400.5051 ISO: CU921400.5051

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157169
Vendor: Sussex Tool and Supply
$314.16
EMUGE CU921400.5051 7/8"x14.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 4.9210 124.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6970 17.70MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size 7/8"
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.7976 20.26MM - 0.8437 21.43MM
Tap Square 0.5230
Tap Chamfer 2.0P-3.0P
