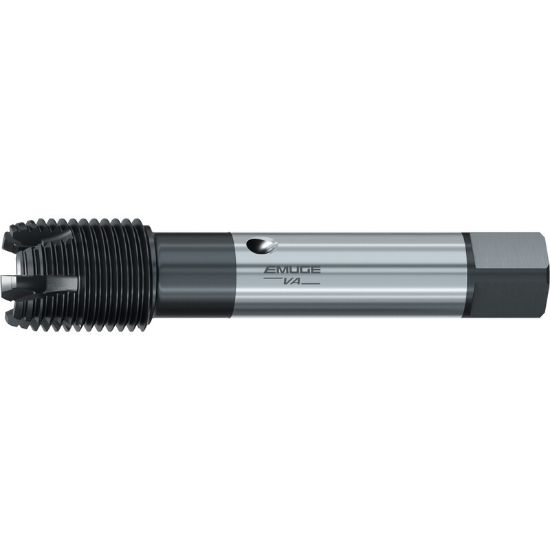

EMUGE CU803011.5020 Tap 1-1/4-7.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE Oxide + TiN

ISO: CU803011.5020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU803011.5020
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping, Tapping
Coating Oxide + TiN
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Dimension Standard DINSI
Thread Size 1-1/4"
Thread Pitch 7.00TPI
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Overall Len 7.0870 180.01MM
Tap Type Mod Bottom
Tool Material Steel
Drill Range 1.1012 27.97MM - 1.1386 28.92MM
Length Type Standard
Shank/Pilot Dia 1.0210 25.93MM
Thread Limit 3B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Flutes/Inserts 6
Tap Square 0.7660
Tap Chamfer 2.0P-3.0P
Tap Style Cut Straight Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
