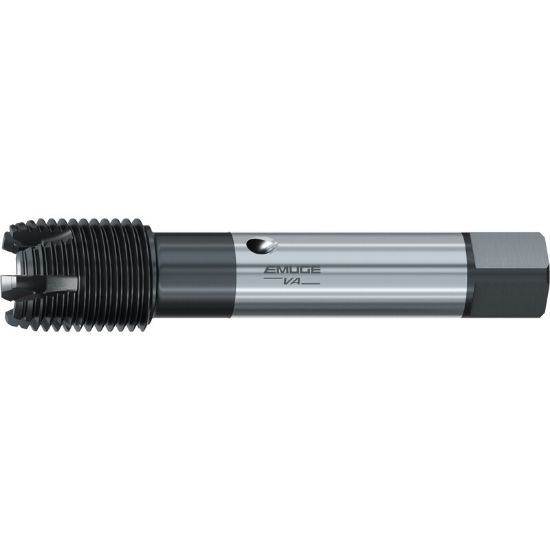

EMUGE CU803011.5016 Tap 3/4-10.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE Oxide + TiN

ISO: CU803011.5016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU803011.5016
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping, Tapping
Coating Oxide + TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 10.00TPI
Thread Limit 3B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Tool Material Steel
Overall Len 4.9210 124.99MM
Flutes/Inserts 5
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Chamfer 2.0P-3.0P
Thread Type NC/UNC
Dimension Standard DINSI
Length Type Standard
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
