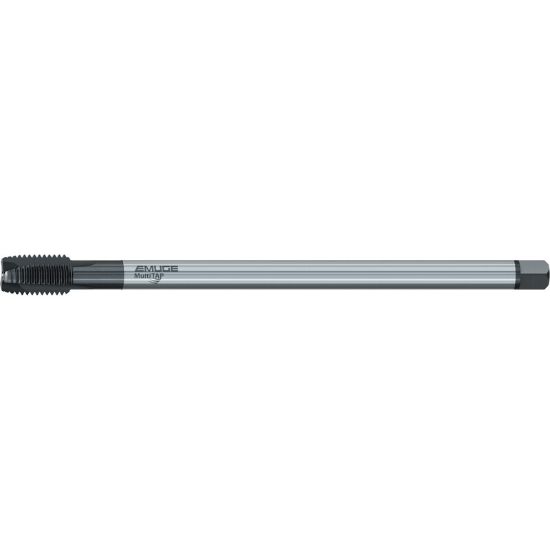

EMUGE CU797300.5049 Tap 5/8-18.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Cobalt HSSE Nitride + Steam Oxide

ISO: CU797300.5049

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU797300.5049
Delivery date: 3-5 days
$146.93

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Coating Nitride + Steam Oxide
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tool Material Steel
Tap Square 0.3600
Tap Chamfer 4P-5P
Thread Size 5/8"
Tap Type Plug
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Tap Style Cut Spiral Point
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Flutes/Inserts 3
Thread Limit 2B/3B
Dimension Standard DINSI
Overall Len 7.8740 200.00MM
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
