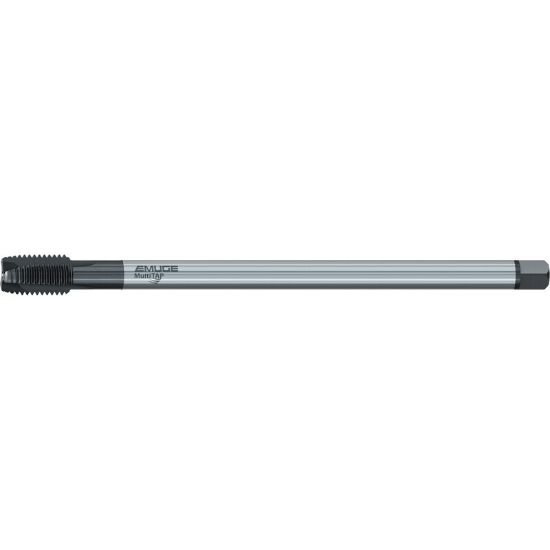

EMUGE CU797300.5047 Tap 1/2-20.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Carbide HSSE Nitride + Steam Oxide

ISO: CU797300.5047

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU797300.5047
Delivery date: 3-5 days
$139.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Coating Nitride + Steam Oxide
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Tap Style Cut Spiral Point
Flutes/Inserts 3
Thread Size 1/2"
Tool Material Steel
Tap Chamfer 4P-5P
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Flute Direction STRAIGHT
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Thread Pitch 20.00TPI
Thread Limit 2B/3B
Dimension Standard DINSI
Overall Len 7.8740 200.00MM
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
