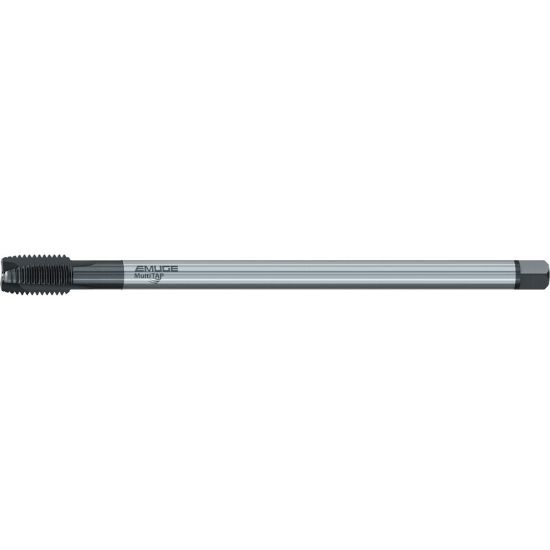

EMUGE CU797300.5013 Tap 1/2-13.00TPI Plug NC/UNC DINSI 4P-5P Carbide HSSE Nitride + Steam Oxide

ISO: CU797300.5013

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU797300.5013
Delivery date: 3-5 days
$138.44

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Pitch 13.00TPI
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Length Type Long
Flutes/Inserts 3
Thread Size 1/2"
Tool Material Steel
Tap Chamfer 4P-5P
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Machine Side Connection Type Tap Collet
Overall Len 8.8000 223.52MM
Tap Square 0.2750
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Type Plug
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
