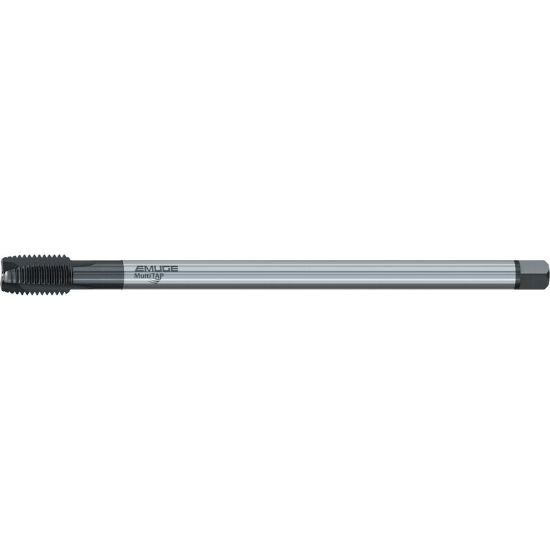

Picture of Emuge CU797300.5013 Tap 1/2-13.00TPI Plug NC/UNC DINSI 4P-5P Carbide HSSE Nitride + Steam Oxide Pulley Long

Emuge CU797300.5013 Tap 1/2-13.00TPI Plug NC/UNC DINSI 4P-5P Carbide HSSE Nitride + Steam Oxide Pulley Long

Part Number: EMUCU797300.5013 ISO: CU797300.5013
Looking for alternatives…
Find a drill for this tap 1/2" × 13.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157677
Vendor: Sussex Tool and Supply
$162.84

Description

EMUGE CU797300.5013 1/2"x13.00TPI Cut Spiral Point Plug 4P-5P HSSE Nitride + Steam Oxide 2B/3B NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type NC/UNC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 8.8000 223.52MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Thread Pitch 13.00TPI
Thread Size 1/2"
Tap Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Square 0.2750
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B/3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard DINSI
