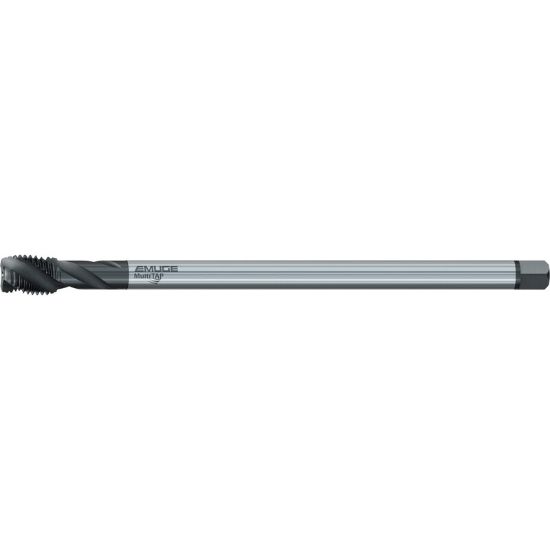

EMUGE CU783200.5012 Tap 7/16-14.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSS HSSE Oxide + TiN

ISO: CU783200.5012

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU783200.5012
Delivery date: 3-5 days
$145.42

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Oxide + TiN
Performance Rating High Performance
Dimensional Specifications
Thread Limit 2B/3B
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Dimension Standard DINSI
Overall Len 7.8740 200.00MM
Length Type Long
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Thread Size 7/16"
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Flutes/Inserts 3
Thread Type NF/UNF/UNEF
Tap Square 0.2420
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
