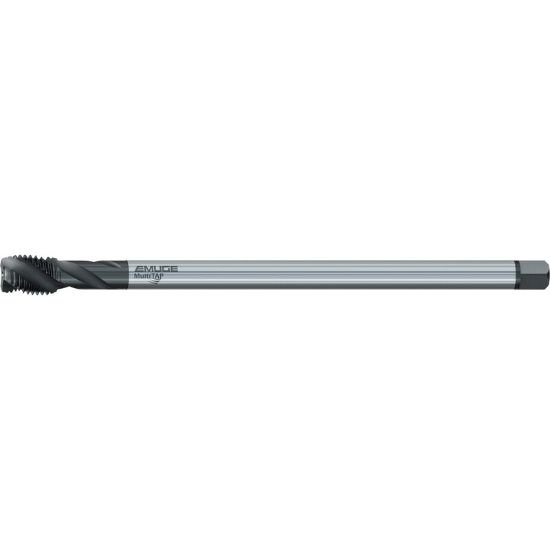

Picture of Emuge CU783200.5047 Tap 1/2-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN Pulley Long

Emuge CU783200.5047 Tap 1/2-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN Pulley Long

Part Number: EMUCU783200.5047 ISO: CU783200.5047
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$179.39
SKU: 1157709

Description

EMUGE CU783200.5047 1/2"x20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 2B/3B NF/UNF/UNEF Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Thread Pitch 20.00TPI
Thread Size 1/2"
Tap Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B/3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Oxide + TiN
Standards & Identification
Dimension Standard DINSI
