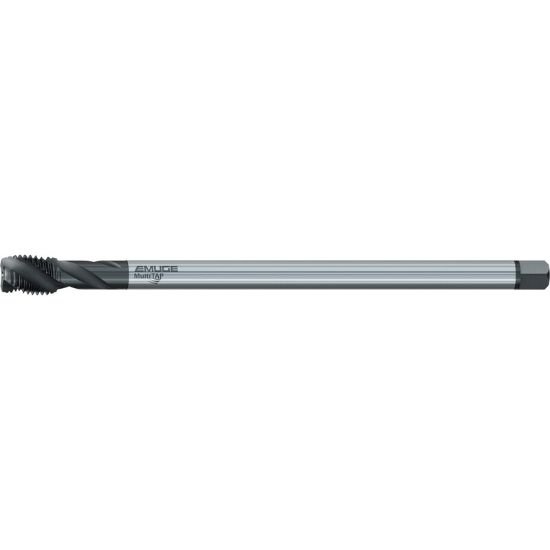

Picture of Emuge CU783200.5015 Tap 5/8-11.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSS HSSE Oxide + TiN Pulley Long

Emuge CU783200.5015 Tap 5/8-11.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSS HSSE Oxide + TiN Pulley Long

Part Number: EMUCU783200.5015 ISO: CU783200.5015
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$196.81
SKU: 1157707

Description

EMUGE CU783200.5015 5/8"x11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 2B/3B NF/UNF/UNEF Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 8.8190 224.00MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 11.00TPI
Thread Size 5/8"
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B/3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Oxide + TiN
Standards & Identification
Dimension Standard DINSI
