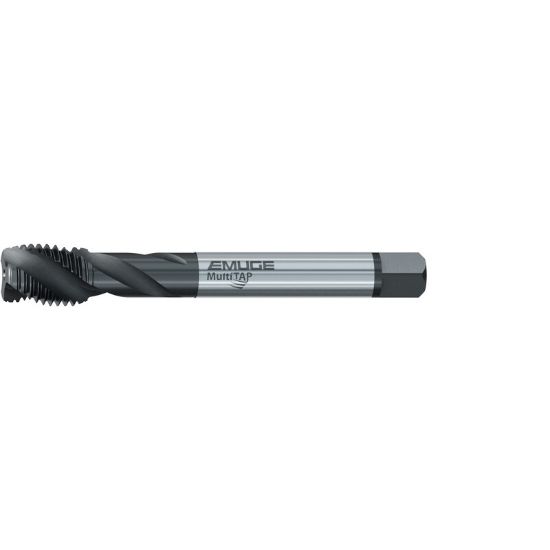

EMUGE CU533200.5017 Tap 7/8-9.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

ISO: CU533200.5017

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU533200.5017
Delivery date: 3-5 days
$162.08

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Coating Oxide + TiN
Made In USA No
Package Size 1
Shipping State Massachusetts
Dimensional Specifications
Thread Pitch 9.00TPI
Tap Square 0.5230
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.6970 17.70MM
Flute Direction R - Right
Drill Range 0.7594 19.29MM - 0.7882 20.02MM
Length Type Standard
Tool Material Steel
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Overall Len 5.5120 140.00MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size 7/8"
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
